The Base Shield provides a simple way to connect with Arduino boards, without the need for breadboards and jumper wires. With the 16 on-board Grove Connectors, you can easily connect with any available !

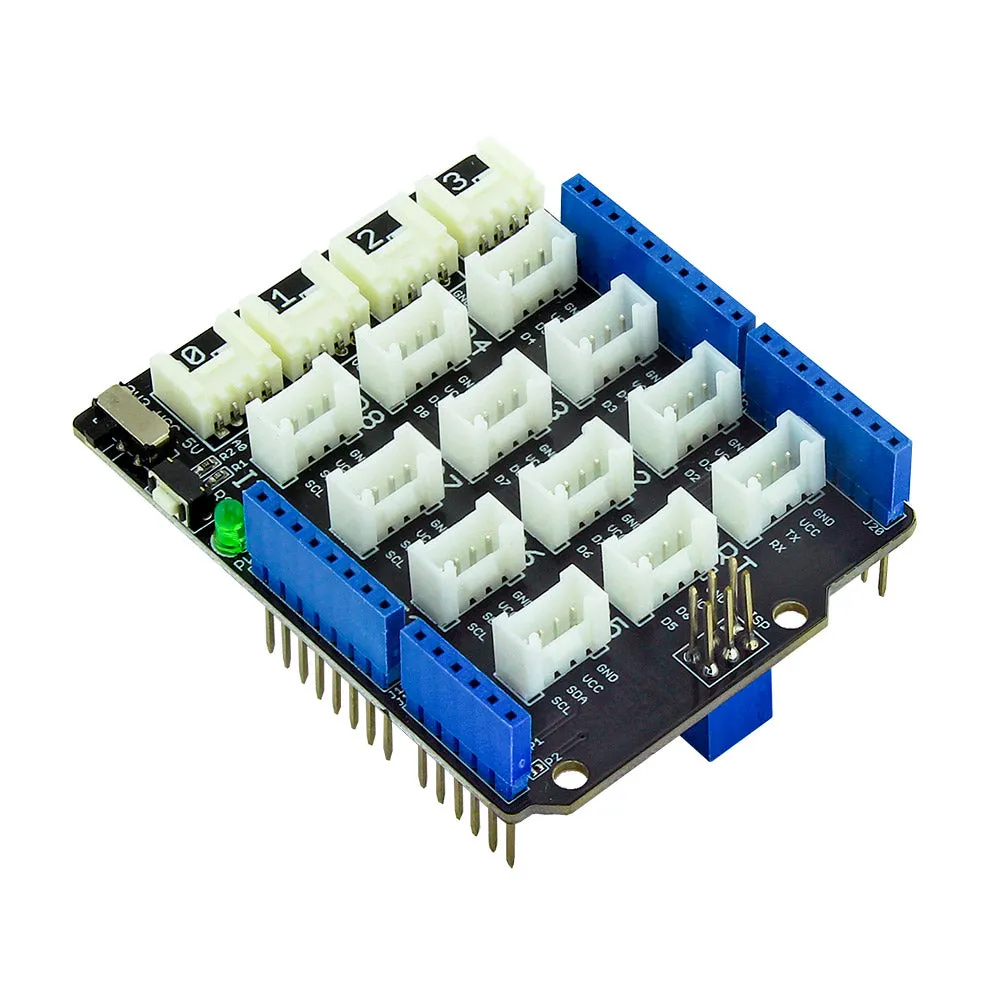

There are 16 on-board Grove connectors including; 4 x Analog, 7 x Digital, 1 x UART, and 4 x I2C. Apart from the Grove connectors, the board also features an RST button, green power status LED, ICSP pin, a toggle switch, and four rows of pinouts.

Every Grove connector has four wires, one of which is the VCC. However, not every micro-controller main board needs a supply voltage of 5V, some boards only need 3.3V. The inclusion of a power toggle switch means that you can select the suitable voltage of the micro-controller mainboard you are using via this switch.

Features:

• Offers a simple way to connect to Arduino boards, such as , without also needing a breadboard and jumper wires.
• The board features an RST button, a green power status LED, ICSP pin, and four rows of pinouts.
• It also features a 3V/5V power toggle switch, allowing for use with 3V and 5V Arduino compatible boards.
• There are 16 on-board Grove connectors including;.
• 4 x Analog.
• 7 x Digital.
• 1 x UART.
• 4 x I2C.

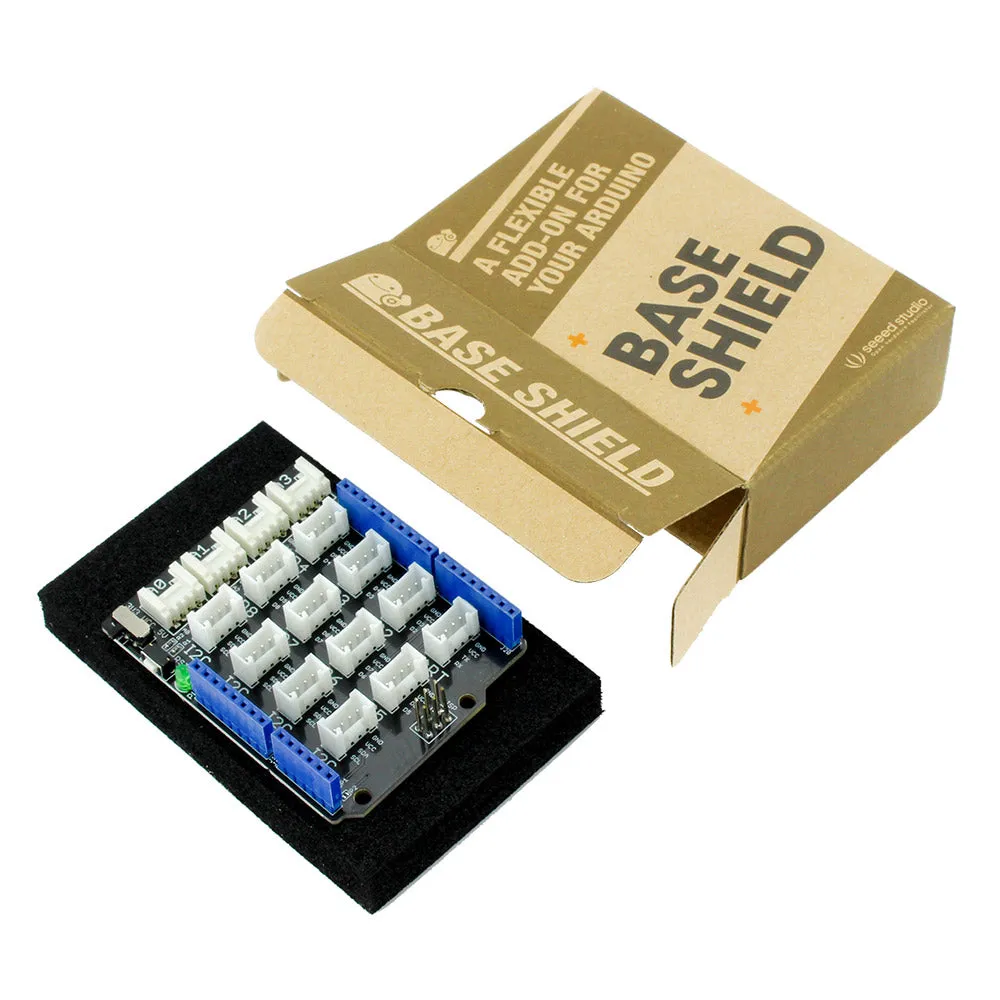

Contents:

• 1 x Grove Base Shield V2.0 for Arduino.

Dimensions:

• Length: 69mm.
• Width: 53mm.
• Height: 23mm.

Requires:

• A compatible Arduino board, such as .
• .
• .
