| Product Attribute | Attribute Value |
|---|---|
| Bandwidth | Normal Mode |
| Number of Inputs | 8 |
| Output | AO,DO |
| Sampling Rate | Normal Mode |
| Series |
Overview

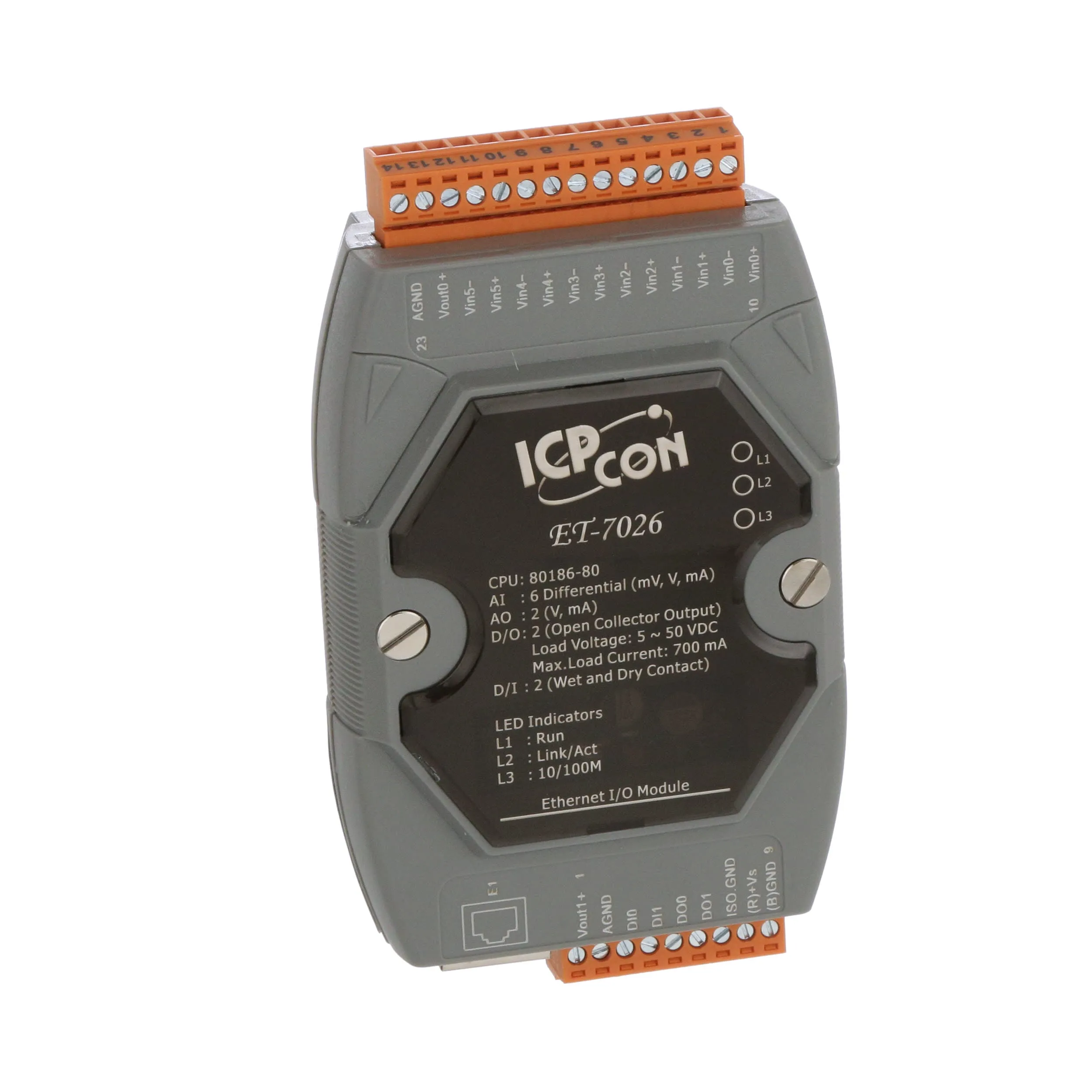

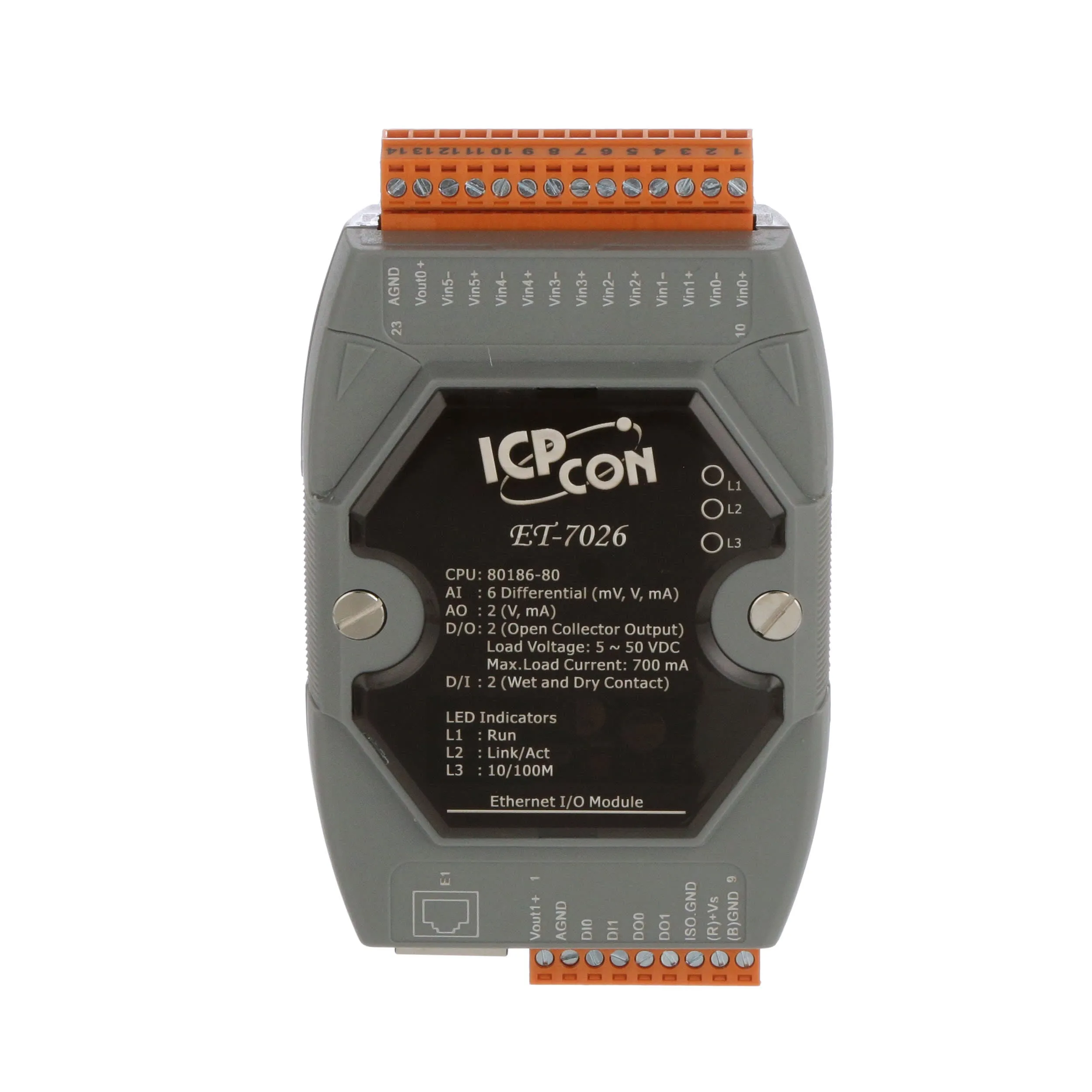

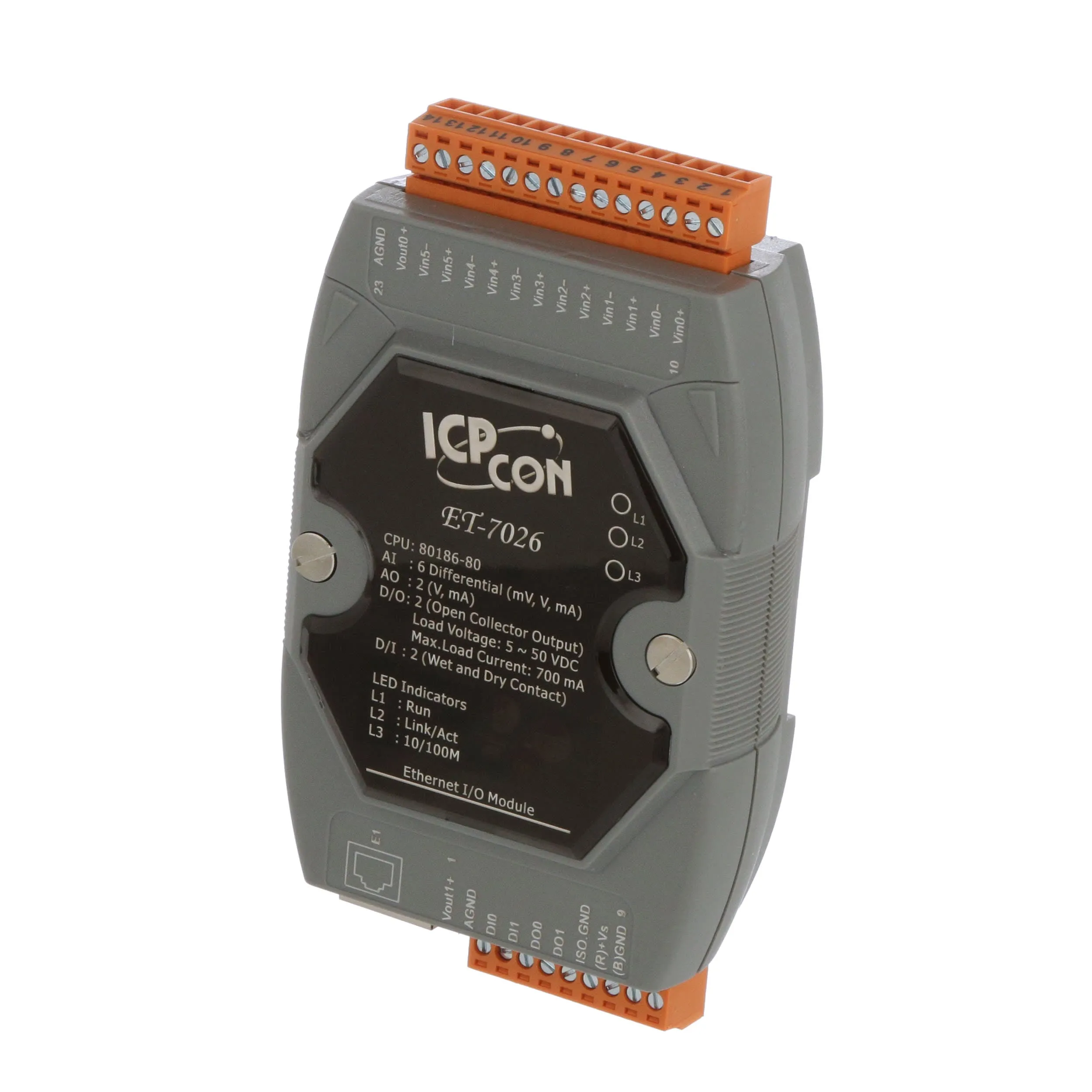

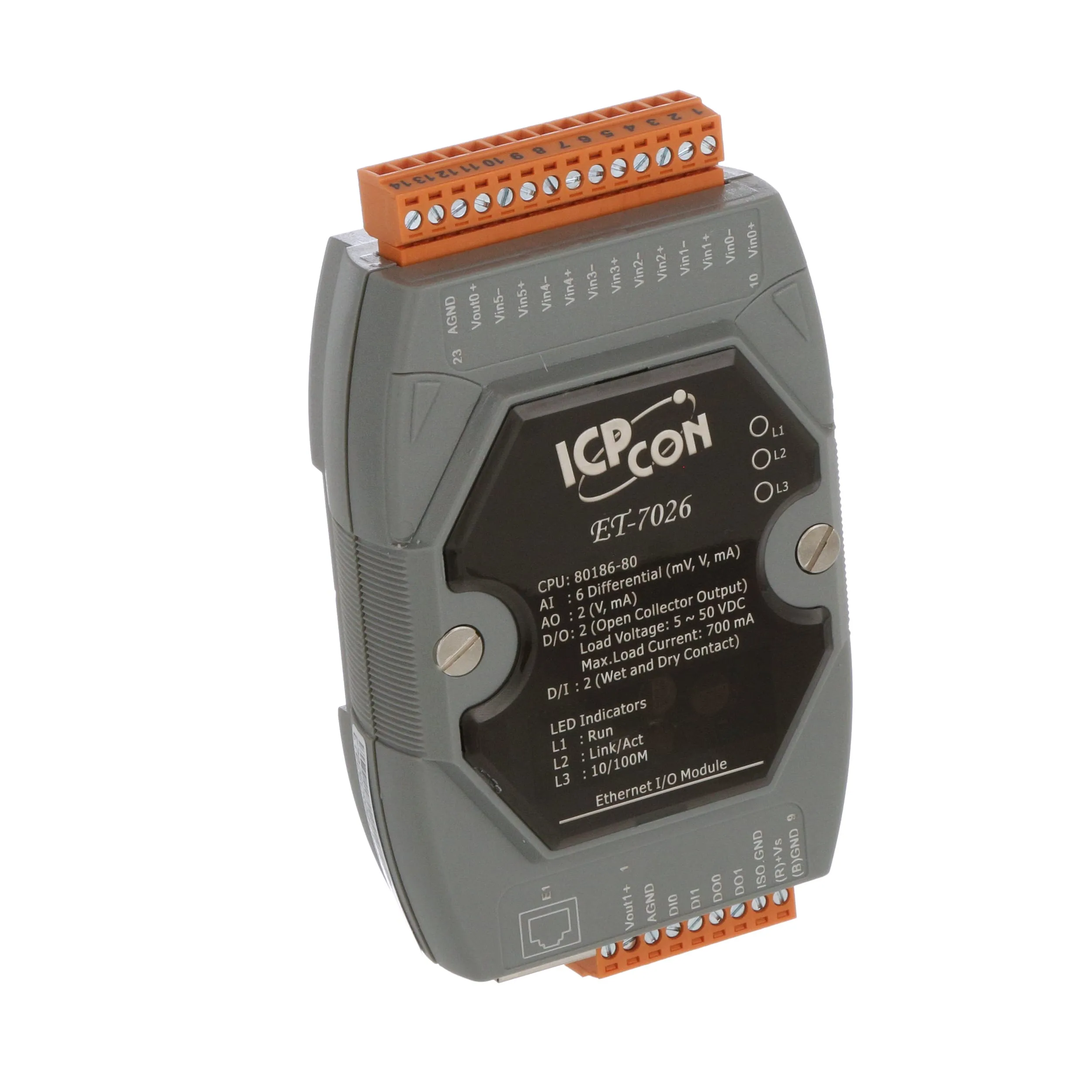

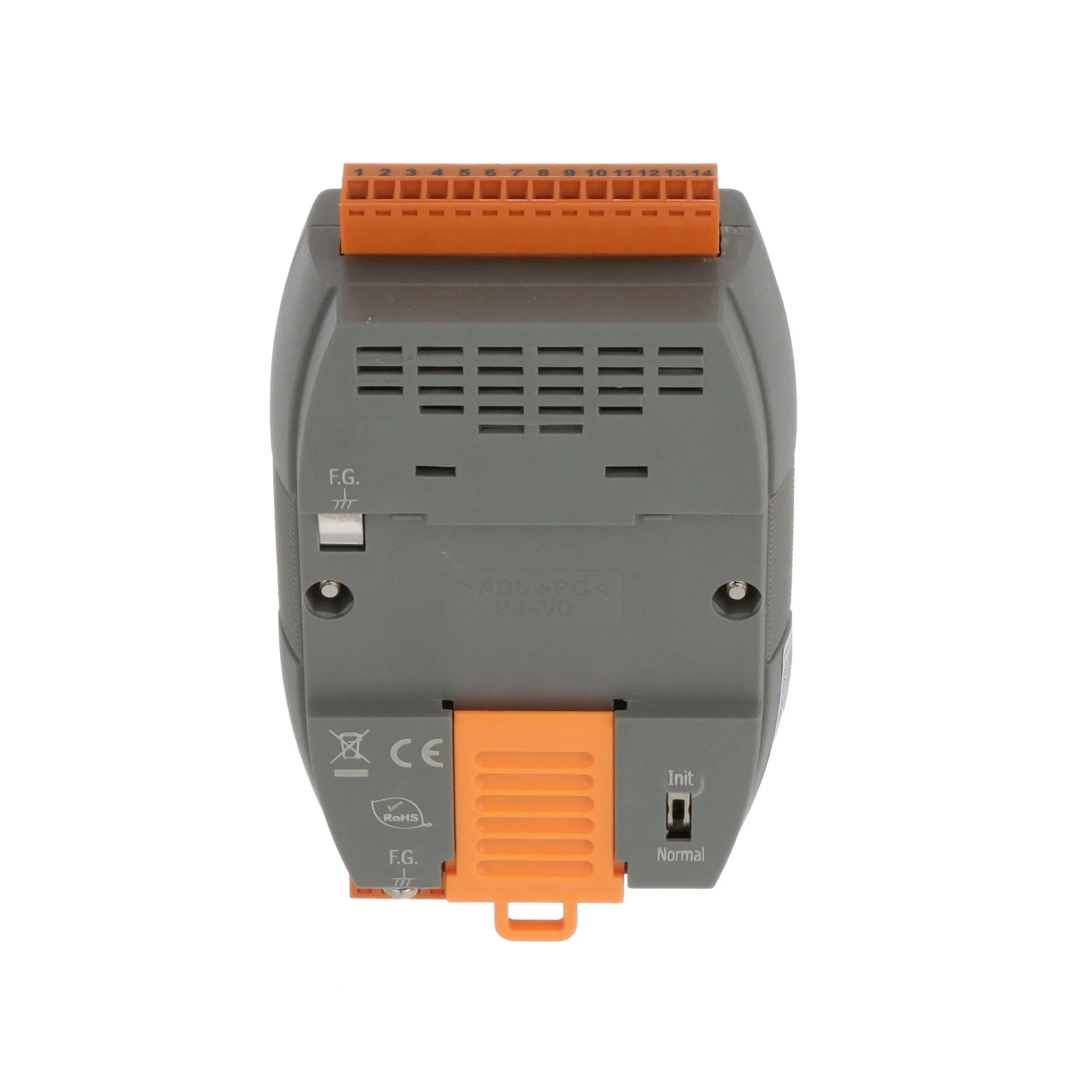

ET-7026 is a multi-function module. It has 6 analog input channels, 2 analog output channels, 2 digital input channels and 2 digital outputs channels. It provides programmable input ranges on all analog inputs (±500mV, ±1V, ±5V, ±10V, ±20mA, 0~20mA and 4~20mA). Analaog outputs are 12 bit with ±5V, ±10V, 0~20mA and 4~20mA. Digital outputs can be set up with alarm output. Each analog input is configurable by an individual range and has 240Vrms high over voltage protection. Jumper selectable for voltage or current inputs/outputs.
