1. Temperature signal can be converted into 12-bit digital
2. Embedded thermocouple break detection circuitry.
3. High impedance differential inputs.
4. Operating Voltage(VDC): 3 to 5.5
5. Temperature Range(°C): 0 to 1024
6. Cold Junction Compensation Range(°C): -20 to 80

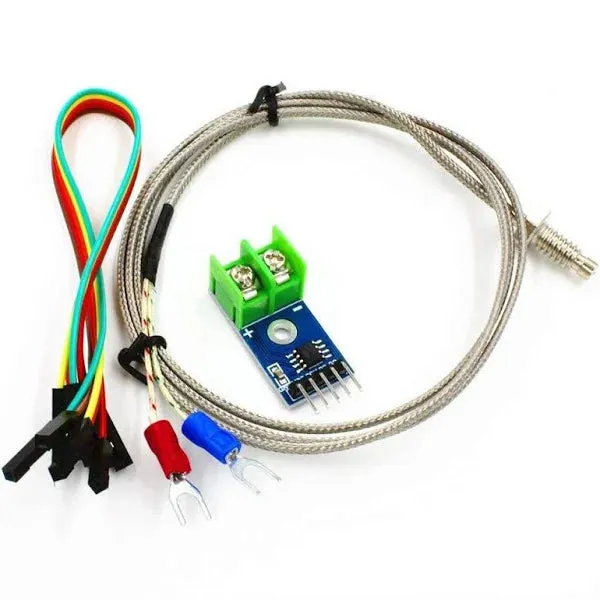

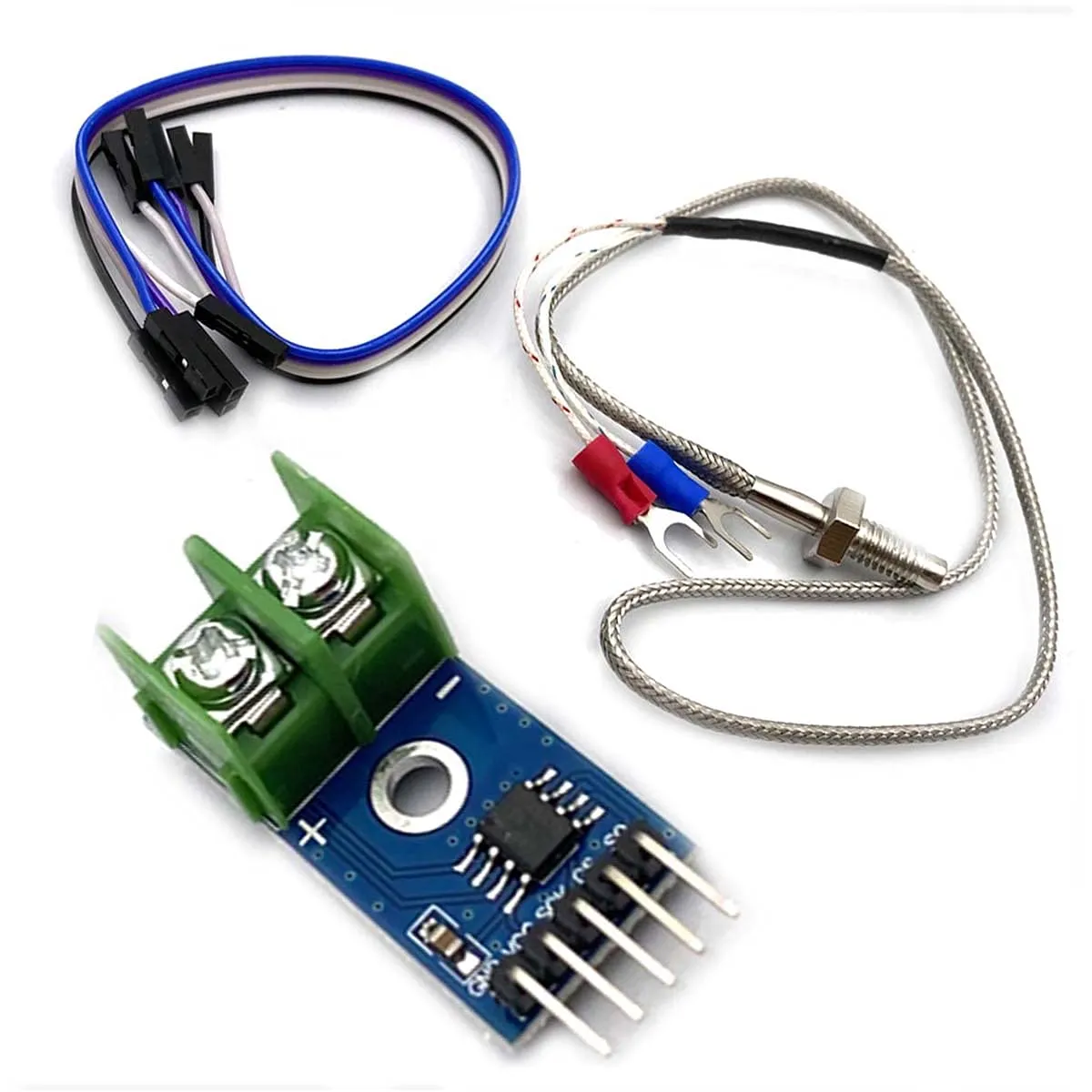

This MAX6675 Module with K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.

It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C.

Screw terminals allow for connection to the thermocouples spade connectors and a 5 pin standard 0.1″ header provides an interface to a microcontroller such as an Arduino development board.

Supplied thermocouple sensor has a diameter of 4.5mm with a 6mm threaded mounting bolt. The total length of the sensor including cable and spade connectors is ~100cm.

Features of MAX6675 Module with K Type Thermocouple Sensor:-

• Internal integrated cold junction compensation circuit;
• Temperature signal can be converted into 12-bit digital
• Embedded thermocouple break detection circuitry.
• K-type temperature probe
• Simple SPI serial output temperature.
• High impedance differential inputs.
• Thermocouple break detection.
• 2000V of ESD signal.

Package Includes

• 1 x MAX6675 Module.
• 1 x K type Thermocouple.
• 4 x F-F Jumper Cable.
