Already have a DE10-nano? Grab the rest of the parts you need to get up and running.

Extruded aluminum case provides sleek, industrial protection

No fan. No noise. No dust.

Unlike computers, the MiSTer doesn't require active cooling. It's an industrial device with 100C max temperature rating.

The case is the heatsink, dissipating internal heat to the exterior.

Thousands of these cases are being used all around the world, from Canada to Kuwait.

Includes

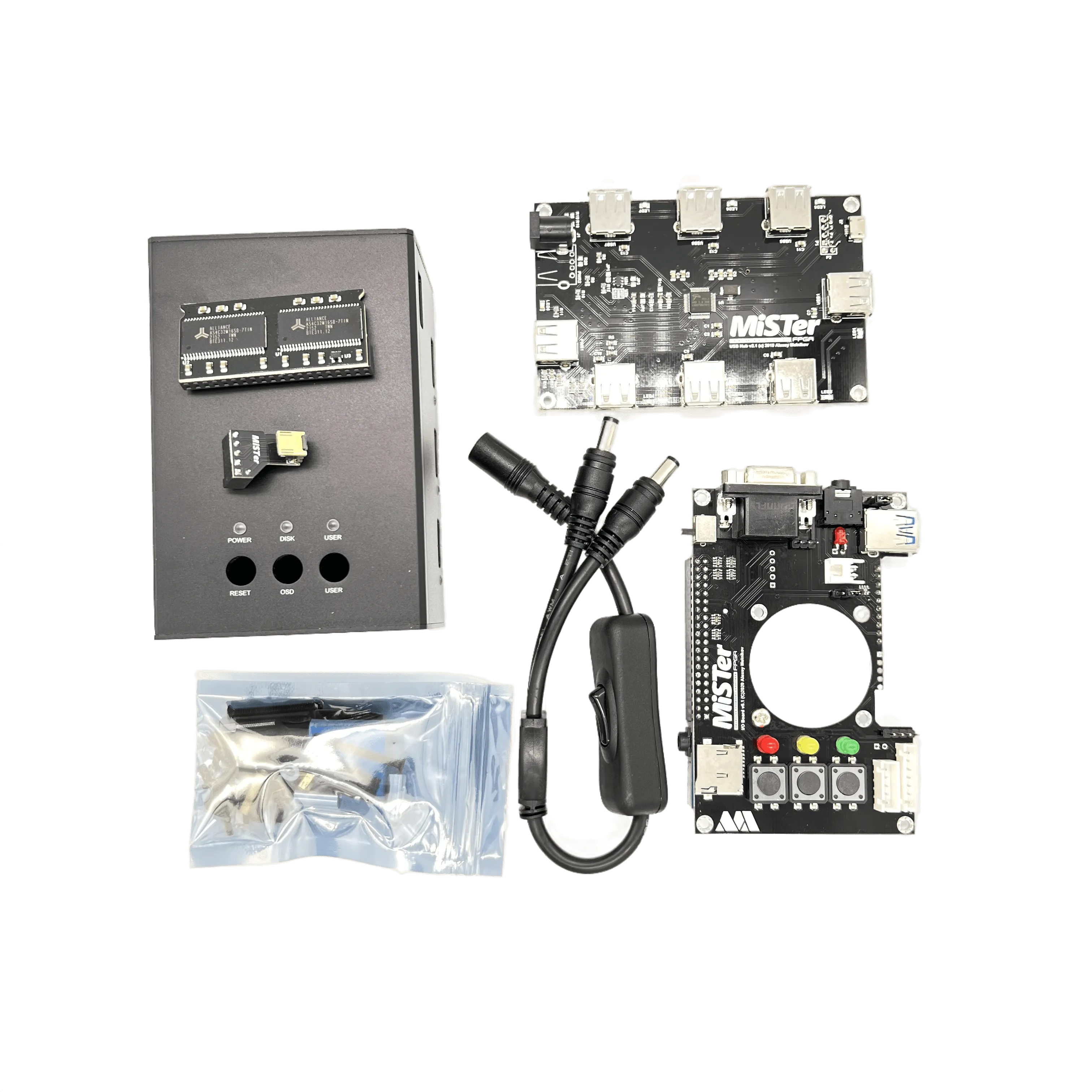

  Analog IO kit contents:

• Aluminum case parts
• IO Board v6.1
• 1 x 128 MB SDRAM
• ADC-In
• USB Hub Bracket Power Splitter

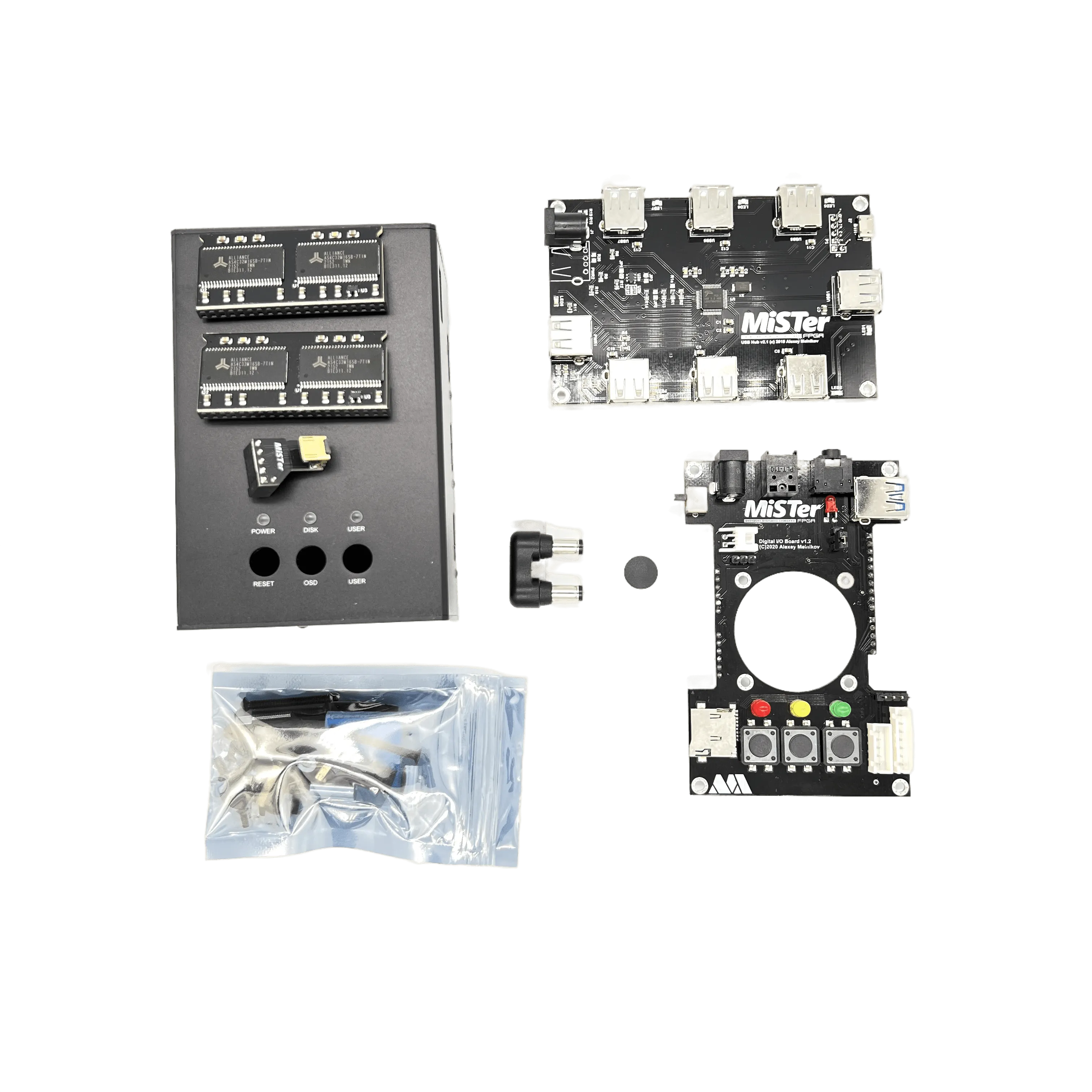

 Digital IO kit contents:

• Aluminum case parts
• IO Digital V1.2
• 2 x 128 MB SDRAM
• USB Hub Bracket  DC Jumper

Instructions:

Step 1) Grab your DE10-nano . They have been shipping out within a few days of ordering and might actually ship from within the US

Step 2) Choose analog or digital IO variant

• Analog has native analog audio and video out but only allows for 1 SDRAM module which is fine for all current cores but a future core might need 2 SDRAM modules
• Digital IO does not have native analog audio or video (can use direct video with an HDMI2VGA dongle) but does have a power switch and allows for dual SDRAM

Step 3) Choose case color

Step 4) Order and wait :)

Step 5) Assemble using this video as a guide

Step 6) If your IO board comes with a fan, please remove it before installation.

That’s it :)
